TicoRAW is the new RAW
High quality RAW
Perfect for human vision - Perfect for machine vision
Microsecond Latency
"Handle RAW at the speed of light"
with a line-based RAW processing
in hardware or software
Perfect RAW Image Quality
Lossless quality of CFA data
(More than 10x reduction!)
Low Power | Low Complexity
Extremely low resource & low memory (no external DRAM) in Hardware
Extremely FAST in Software
Any Resolution
For videos & stills
From 1 to 200 Megapixels
Up to 16bit RAW with HDR support
Proxy
High Quality RAW
Ready for your application
Live IP 生产
Low-latency RAW Streaming
Camera to remote CCU,
Camera to Cloud
相机
Digital Camera for Stills & Movies: Mirrorless, DSLR, Cinema,
360°, Multi-sensors, SportCAM
Mobile
Mobile & IoT devices,
Sensors to processors
ISP optimization
Efficient & lower power interfaces
GIS & Space
Large resolution capture systems
Aerial photography
汽车
ADAS
Vehicle network
Test / Recording systems
Industrial Vision
Machine vision cameras, Inspection cameras, Microscope, Medical (Endoscope,..), Smart Glasses
TicoRAW is the new RAW
Gain in Efficiency, Improve your imaging workflows
- Reduce power consumption and reduce video bandwidth to process more pixels from the sensor.
- Handle higher image and video resolution, high frame rate and high dynamic range easily : to capture to record, to transmit, to edit, to analyze.
- Reduce the bandwidth of memory during the ISP process and RAW data analysis.
- Get the lowest latency ("pixel-line") to transmit RAW data over your wired / wireless network, infrastructures, interfaces.
- Efficiently decrease the stored RAW image data on the storage media , and extend camera battery duration
- Increase the editing, rendering, analytics speed and while retaining the sensor data needed for a complete control of the RAW processing pipeline.
Image Sensors
Camera Module
Processors
Network
Processing & Storage
Free up RAW storage space and bandwidth needs.
From 2:1 to up to 16:1 with no compromise.
See how TicoRAW can help you to get smaller RAW storage, longer recording time and faster file transfer and raw editing.
See how TicoRAW can help you to transmit RAW at the speed of light over limited bandwidth.
| TicoRAW @ 60fps | Example @ 2 BPP | Example @ 1 BPP |
| Mbit/s | Mbit/s | |
| 1920 x 1080 | 250 Mbps | 125 Mbps |
| 4096 x 2160 | 1 Gbps | 500 Mbps |
| 7680 x 4320 | 4 Gbps | 2 Gbps |
Compression ratio according to the RAW bit depth :
| BIT DEPTH | 2 BBP | 1 BPP |
| 10 | 5:1 | 10:1 |
| 12 | 6:1 | 12:1 |
| 14 | 7:1 | 14:1 |
| 16 | 8:1 | 16:1 |
TicoRAW is the new RAW. Preserve RAW at the size of a regular JPEG file !
| TicoRAW 12bit @ 60 fps | Example in Math. Lossless (~2:1) on 1TB SSD | Example @ 6:1 (2 BPP) on 1TB SSD | Example @ 12:1 (1 BPP) on 1TB SSD |
| 1920 x 1080 | 177 min | 533 min | 1066 min |
| 4096 x 2160 | 44 min | 133 min | 266 min |
| 7680 x 4320 | 11 min | 27 min | 54 min |
TicoRAW Technical Specifications
| IMAGE / VIDEO | 颜色格式 | CFA (color-filter-array) RAW data, Bayer data (RGGB, BGGR, RCCB, RYYCy, RGBW, ...) (optional monochrome and 4:2:2 mode) |
| BIT DEPTH | 8- / 10- / 12- / 16-bit sensors | |
| 分辨率 | Any up to 200 MPixels ( 20.000x 10.000 pixels) | |
| 帧速率 | Any (depending on ASIC / FPGA or CPU/GPU processor configurations) | |
| 处理 | 质量 | Mathematically lossless / Near-lossless / Visually lossless down to 1 bit per pixel (bpp) |
| 速率控制 | Constant Bit Rate (CBR) operation (or Constant Quality mode), adjustable from ~2:1 down to 20:1 (0,5bpp) | |
| 延迟 | （子）帧内：降至 0.1 毫秒 | |
| 代理选项 | Raw and RGB downscaler in decoder for ultra-fast analysis, proxy viewing and fast editing | |
| IMPLEMENTATION | IP-cores Libraries | Low power in ASIC & FPGA, multiple architectures & profiles available, silicon-proven IP-cores Optimized software libraries for x86-64 & GPU. |
IP-cores and Software Libraries, AVAILABLE
Light IP-cores
- Small footprint / low memory / low power IP-cores
- Low power (no external DDR)
- Various encoder & decoder profiles & versions
- AMD-Xilinx, Intel, Lattice FPGA
- ASIC such as TSMC 12, 16, 28, 40nm
Fast Software
Awarded and Deployed

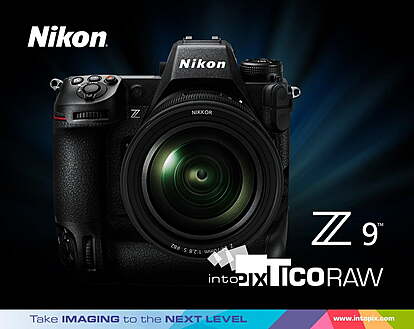

Added in Nikon Z9 Flagship Mirrorless Camera
intoPIX TicoRAW, A smart strategic move that will allow camera professionals to benefit from higher resolution with still & movie RAW format, while significantly reducing storage.
Start your Evaluation & Implementations NOW!
You can also provide your test content to us !
More information on TicoRAW
Read the latest news about TicoRAW on our blog, download press images and flyers.
Contact our compression experts for detailed product information.
